Water purification system RA 30 EDI 30L/h

Twin-120 System.

Zuverlässige Versorgung mit Reinwasser für biologische Analysengeräte und Labore. The Twin-120 is a compact, highly efficient pure water treatment system that delivers ISO 3696 Type I and Type II water directly from tap water. With its integrated 100 L storage tank, redundant pump station, UV disinfection, and a bacteria-proof filter, the system ensures a continuous, contamination-free supply of pure water for critical clinical and laboratory applications. Designed for both clinical analyzers and general laboratory tasks—such as feeding biochemical analyzers, autoclaves, and other laboratory applications—the Twin-120 offers the highest purity, reliable operation, and a space-saving design for demanding applications.

Technical data:
  • Resistance of Type I pure water at 25 °C: 18.2 MΩ·cm
  • Conductivity of Type I pure water at 25 °C: 0.055 μS/cm
  • Conductivity of pure water of quality 2 at 25 °C: < 1 μS/cm
  • Feed water: tap water
  • Nominal flow rate to the tank: 120 L/h
  • Dimensions (W × D × H) in cm: 118 × 80 × 176
  • Weight: 280 kg
Areas of application:
  • Supplying clinical and biochemical analyzers
  • Flame atomic absorption spectrometry (flame AAS)
  • Ion chromatography
  • Gas chromatography
  • Reagent preparation
  • Autoclaves
  • ICP-MS & ICP-OES
  • Liquid chromatography (HPLC)
System Features:
Direct connection to tap water – no pretreatment required
Integrated 100 L storage tank
Redundant design for maximum operational reliability and uninterrupted operation

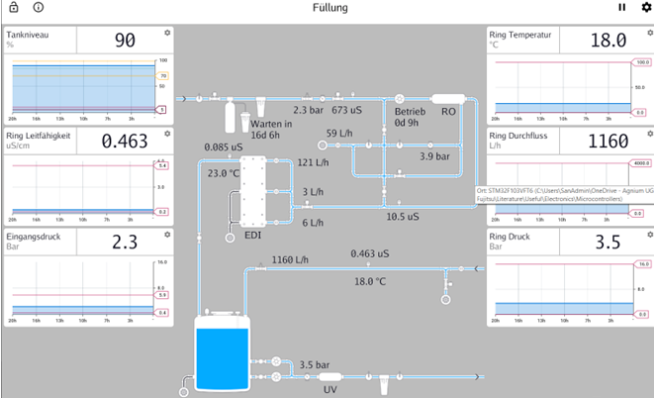

Real-time monitoring of conductivity, temperature, flow and pressure in the ring line
Double pump station for integrated redundancy
Modbus TCP interface for system integration
Data recording with USB download function
Historical trend charts for easy performance monitoring
Intelligent alarm system with clear instructions
Compact design for easy installation in limited space
User-friendly access and easy replacement of consumables
This water treatment system is available in various configurations and can be customized to your individual needs.
Our team will be happy to assist you in finding the right and most cost-effective solution for your laboratory (for laboratory systems) or your industrial application (for industrial systems).
Contact us – together we will find the perfect solution for your needs.
